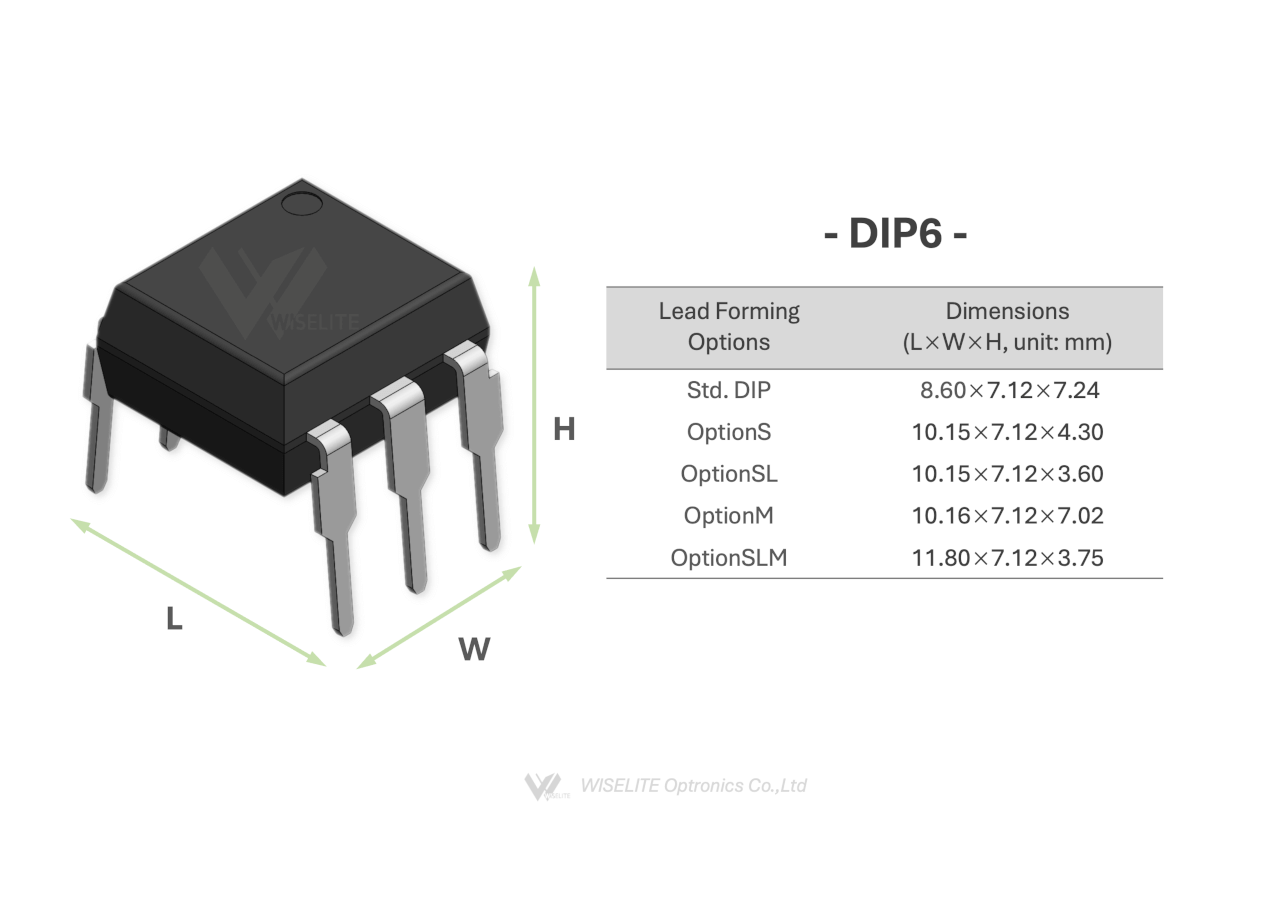

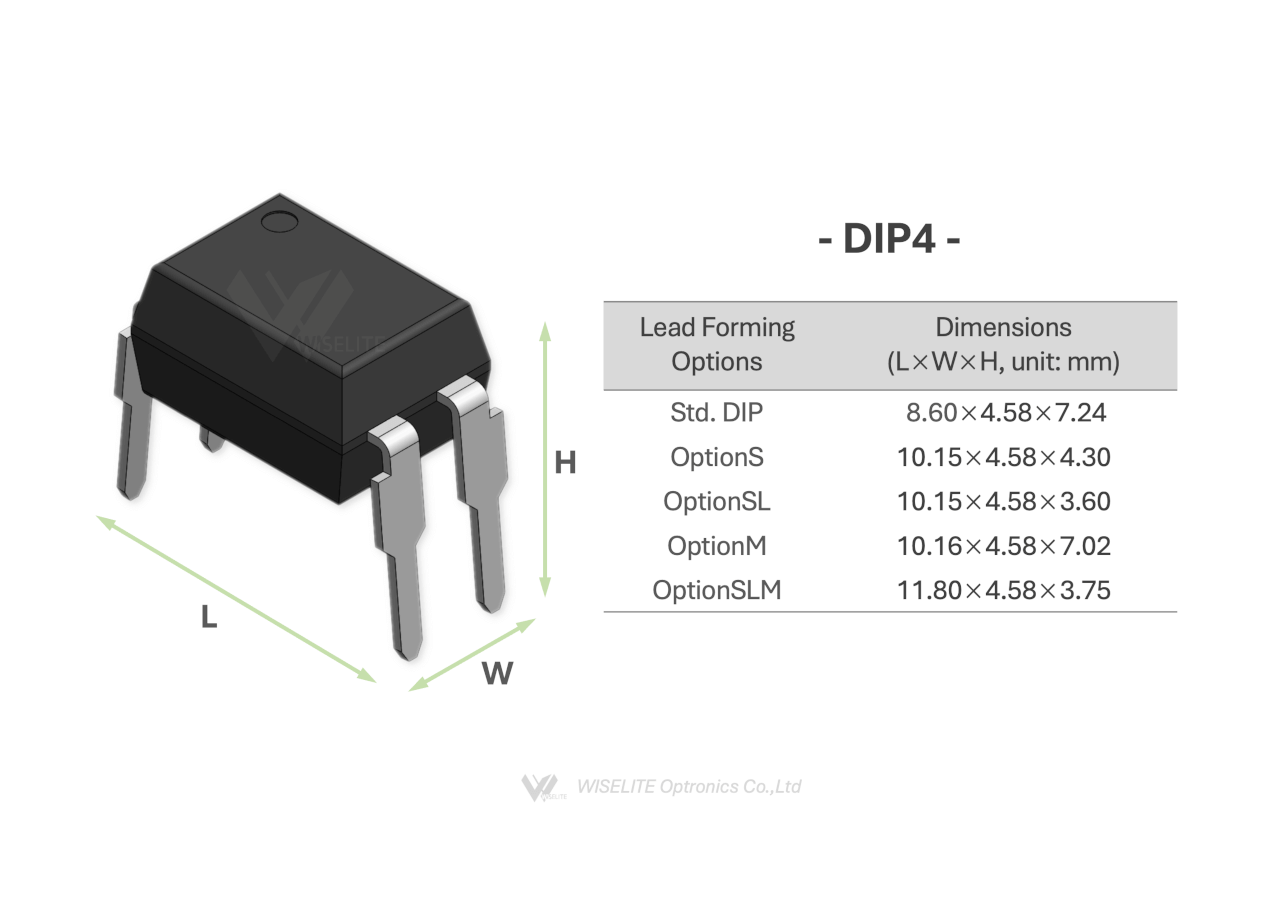

Transistor, DIP4, DIP6, DIP8, SOP4, SSOP4 & LSOP4
To see a larger version of the photo, please click on it
FUNCTION
DC photo transistor
AC photo transistor
DC darlington transistor
DC high voltage transistor
DC high voltage darlington transistor
Product specification
-
Part no. Download PKG Speed
SeriesFunction Number
of ChannelsIF
(mA)BVCEO
(V)CTR2
(%)Tr
(μs)Tf
(μs)Topr
(℃)VISO
(Vrms)MPC816X1 DIP41 DC Photo Transistor 1 5 80 50~600 3 4 110 5000 MPCS-816 DIP41 ✻ DC Photo Transistor 1 5 80 50~600 0.3 1.3 110 5000 MPC817X1 DIP41 DC Photo Transistor 1 5 35 50~600 3 4 110 5000 MPC814X1 DIP41 AC Photo Transistor 1 1 80 20~400 7 9 110 5000 MPCS-814 DIP41 ✻ AC Photo Transistor 1 1 80 20~400 0.3 1.3 110 5000 MPC815 DIP41 DC Darlington Transistor 1 1 40 600~7500 60 53 110 5000 MPC851 DIP41 DC High Voltage Transistor 1 5 350 50~600 5 8 110 5000 MPC852 DIP41 DC High Voltage Darlington Transistor 1 1 350 1000~15000 90 20 110 5000 4N25 DIP61 DC Photo Transistor 1 10 80 >20 6 8 110 5000 CNY17 DIP61 DC Photo Transistor 1 10 80 40~320 6 8 110 5000 MPC827 DIP81 DC Photo Transistor 2 5 80 50~600 3 4 110 5000 MPC356 SOP4 DC Photo Transistor 1 5 80 50~600 3 4 110 3750 MPCS-356 SOP4 ✻ DC Photo Transistor 1 5 80 50~600 3 4 110 3750 MPC357 SOP4 DC Photo Transistor 1 5 35 50~600 3 4 110 3750 MPC354 SOP4 AC Photo Transistor 1 1 80 20~400 7 9 110 3750 MPCS-354 SOP4 ✻ AC Photo Transistor 1 1 80 20~400 0.3 1.3 110 3750 MPC351 SOP4 DC High Voltage Transistor 1 5 350 50~600 3 5 110 3750 MPC352 SOP4 DC High Voltage Darlington Transistor 1 1 350 1000~15000 90 20 110 3750 MPC355 SOP4 DC Darlington Transistor 1 1 40 600~7500 95 95 110 3750 MPCS-217 SSOP4 ✻ DC Photo Transistor 1 5 80 50~600 0.3 1.3 110 3750 MPCS-214 SSOP4 ✻ AC Photo Transistor 1 1 80 20~400 0.3 1.3 110 3750 MPC101X LSOP4 DC Photo Transistor 1 5 80 50~600 3 4 110 5000 MPCS-101X LSOP4 ✻ DC Photo Transistor 1 5 80 50~600 0.3 1.3 110 5000
