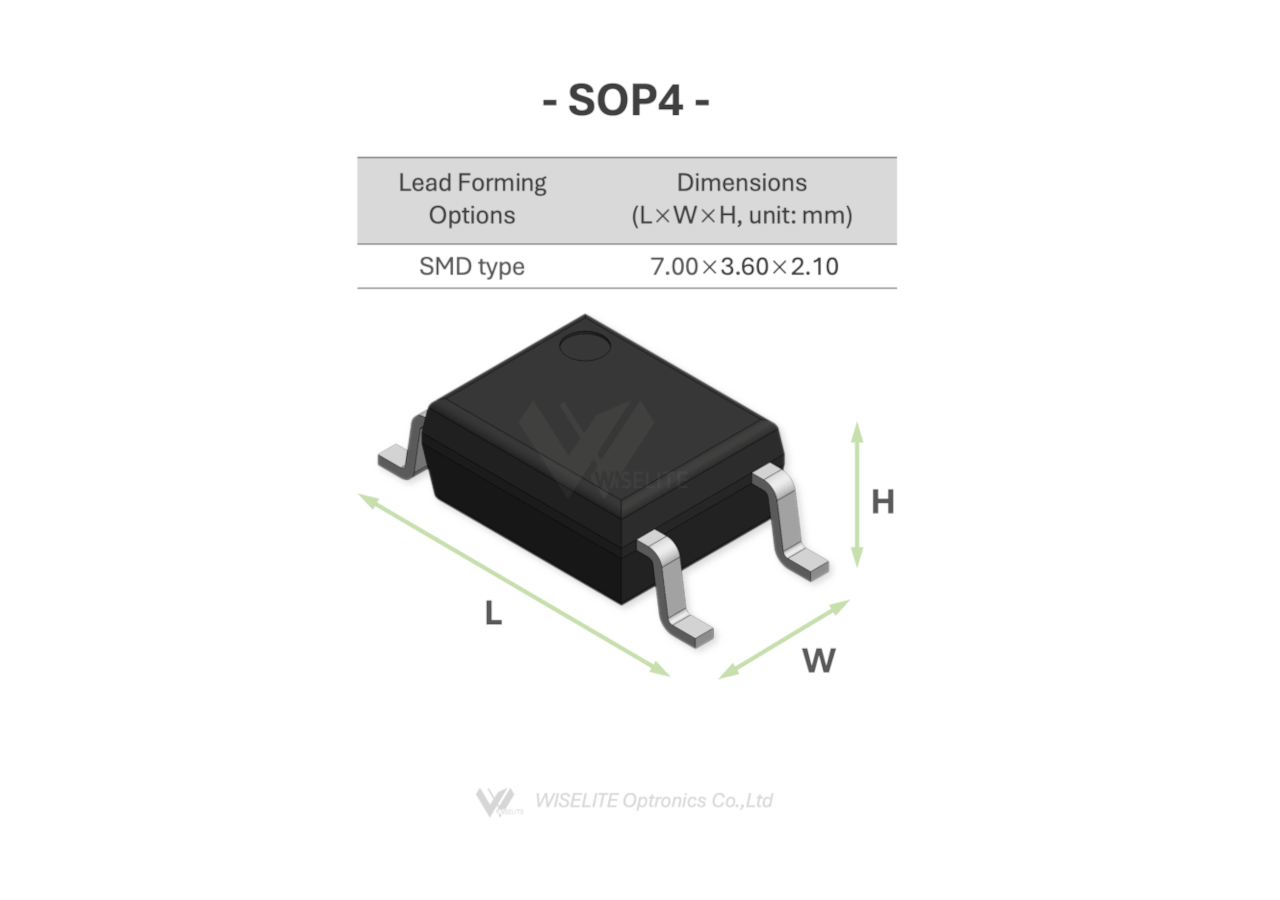

Transistor, SOP4

To see a larger version of the photo, please click on it





   FUNCTION

   DC photo transistor

   AC photo transistor

   DC high voltage transistor

   DC high voltage darlington transistor







    ✉️  Contact Us

Back

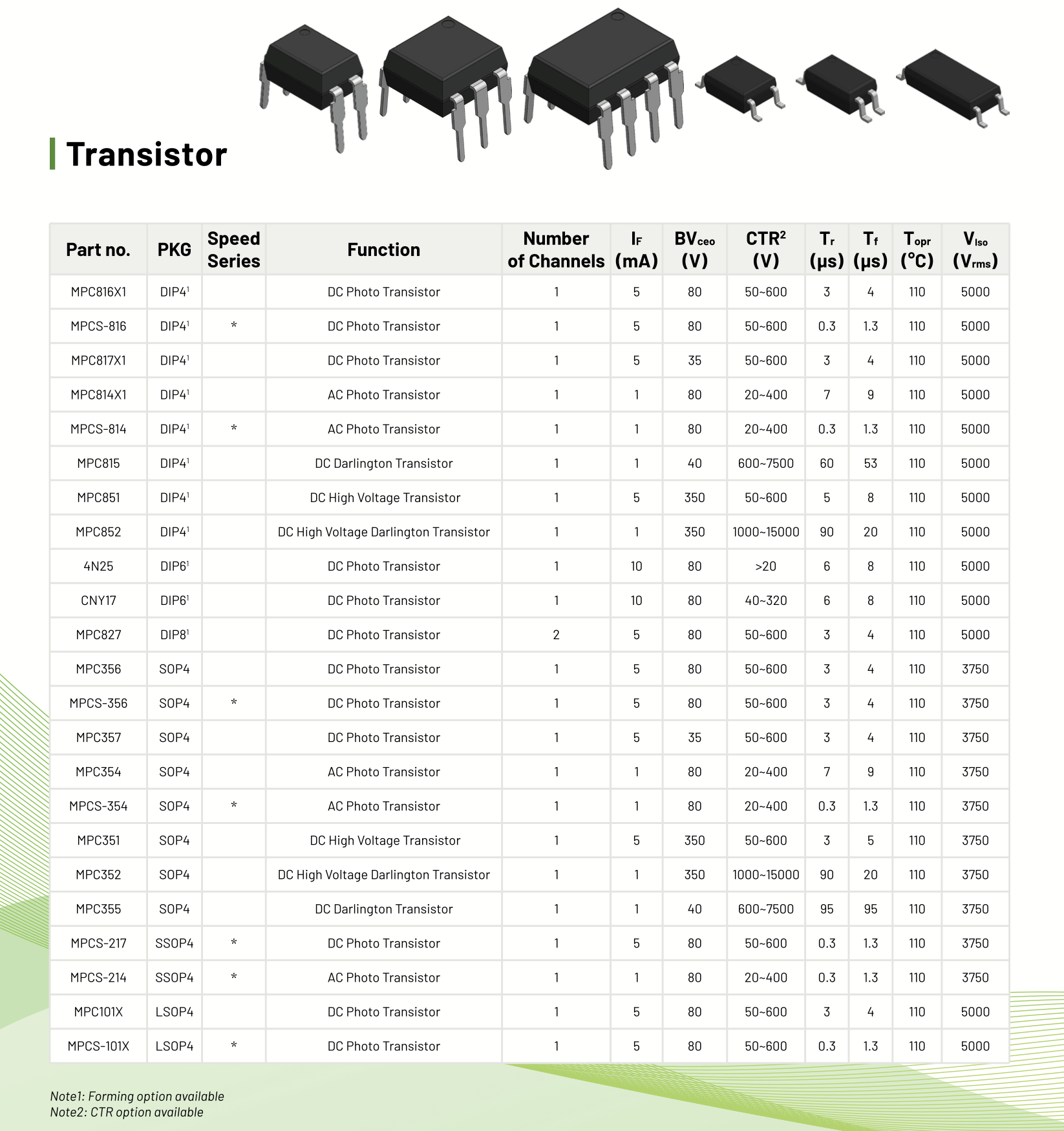

Product Specifications

  • Part no. Download PKG Speed
    Series    		 Function Number
    of Channels    		 IF
    (mA)    		 BVCEO
    (V)    		 CTR2
    (%)    		 Tr
    (μs)    		 Tf
    (μs)    		 Topr
    (℃)    		 VISO
    (Vrms)
    MPC356 　 SOP4 　 DC Photo Transistor 1 5 80 50~600 3 4 110 3750
    MPCS-356 　 SOP4 ✻ DC Photo Transistor 1 5 80 50~600 3 4 110 3750
    MPC357 　 SOP4 　 DC Photo Transistor 1 5 35 50~600 3 4 110 3750
    MPC354 　 SOP4 　 AC Photo Transistor 1 1 80 20~400 7 9 110 3750
    MPCS-354 　 SOP4 ✻ AC Photo Transistor 1 1 80 20~400 0.3 1.3 110 3750
    MPC351 　 SOP4 　  DC High Voltage Transistor 1 5 350 50~600 3 5 110 3750
    MPC352 　 SOP4 　 DC High Voltage Darlington Transistor 1 1 350 1000~15000 90 20 110 3750
    MPC355 　 SOP4 　 DC Darlington Transistor 1 1 40 600~7500 95 95 110 3750
